EM-25 OPTIC / EM-25 USB VIDEO OPTIC

EM-25 Optic / EM-25 USB Video Optic

The EM-25 are new instruments, optical and video, prepared to the control and to the small objects precision measures or on different typology of surfaces in the working.

They are completely made of aluminum and steel and their conformation and use praticalness bring them easily useable on plane or curve surfaces.

In the EM-25 there are also a prepared quality microscope with longitudinal sliding, a digital micrometric movement gauge for measurements up to 25mm with resolution of 0.001mm, a high ring luminous source with led variable intensity and a b aluminium base adjustable in height.

With these instruments it is possible to perform measurements and inspections on plane or curve surface and on subjects high up to 50mm (with optional spacers).

One very interesting characteristic of EM-25 is the possibility to can use them indifferently and with the maximum easiness as optical and/or video instruments in the same time. For the use in video, a micro camera USB from 5 Megapixel is used that is inserted on the ocular appropriately designed for the use maximum simplicity.



With the EM-25 OPTIC it is possible to make also linear or angular measurements with a measurement scale includable under the eyepiece (the linear scale is yet inserted on equipment); the minimum measurement depends from the used model lens (25X–50X–75X–100X).

The EM-25s are available only in optical version or optical-video; to the optical version it will be possible however to add the special micro camera USB with software also in a second time.

In function of the desired optical magnifies it is possible to choose between a set of 8 models, 4 for the EM-25 OPTIC and 4 for the EM-25 USB VIDEO OPTIC respectively with lens 25X–50X–75X–100X (100X–200X–300X–400X in video) and relative measurement scale. For the set OPTIC it is possible to change easily the endowment lens with other ones, but, in this case, they will not be able to be used to perform measurements because the ocular scale is usable only in combination with the endowment lens; if you want use them it is necessary to change the scale and the ocular. In the set OPTIC, objectives will be used equally with different enlargement factors and make high precision measurements with the millesimal digital gauge in endowment.

For the set USB VIDEO OPTIC, the use in video allows the use of all available lenses because the measurements are performed on the image from the software and except them from the digital gauge up to 25mm.

The two systems, EM-25 OPTIC e EM-25 USB VIDEO OPTIC, are prepared to be laid also on delicate surfaces or check objects with different heights. With this aim they are equipped with 4 Teflon feet with magnetic hold and 4 in steel ones for standard uses; to adequate them to the objects height, also 2 sets of 4 spacers (optional) are available that added to the respective feet adapt themselves easily to the desired height through a magnetic slot system. There are also, as accessories, anti sliding rolls for checks and measurements on cylinders of different types with diameter from 110mm.

The illumination, guaranteed from a rechargeable battery, with a range of about 32 continue working hours (a work month in normal condition), so that the EM-25 are completely autonomous from any external feeding source.

The EM-25 USB VIDEO OPTIC connection to a portable PC is very simple because it is necessary only a USB cable. For the equipment movements on the surfaces to check, the operator will take advantage of a practical handle for both the sets.

Important accessories are in progress that will bring more multiple and unique on the market these instruments.


SPECIFICATIONS

Peak Optical Microscope 2008-25 2008-50 2008-75 2008-100
Optical Magnification 25X 50X 75X 100X
Video Magnification * 100X 200X 300X 400X
Optical Field of View 3.0 mm 1.6 mm 1 mm 0.8 mm
Video Field of View * 2.8x2.1 mm 1.36x1.02 mm 0.92x0.69 mm 0.67x0.5 mm
Working distance
(objective-surface)
17.0 mm 11.7 mm 11.7 mm 11.6 mm
Eyepiece scale divisions N°24
0.05 mm
N°13
0.02 mm
N°34
0.01 mm
N°44
0.005 mm
N°26
0.002"
N°15
0.001"
N°36
0.0005"
N°46
0.0005"
* referred to a 14" monitor

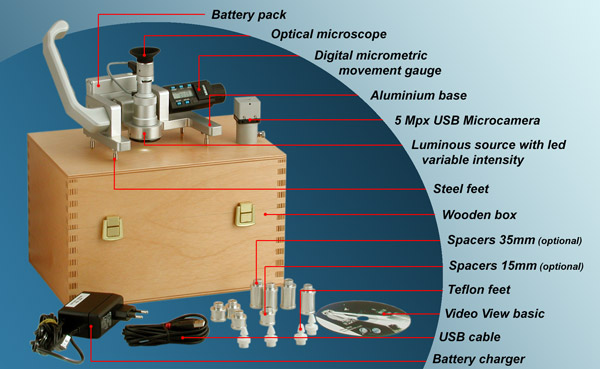

KIT CONTENTS

Kit Contents

USB MICROCAMERA

• Image sensor: 1/2.5" color CMOS
• 5 Mega pixels
• Resolution: 1920 x 1080 @ 30fps
• USB 2.0 interface

System requirements for proper software running:

Operative system Windows 10 or 11 Pro
CPU Intel Core iX or equivalent
RAM memory 4 GB (recommended 8 GB)
Video card 1 GB
Disk space 100 MB
Input ports 1 USB 2.0 for video input
1 USB 2.0 for the software hardware key

BATTERY PACK

• 32 hours of continous work (a month of work in normal conditions)
• Complete recharge in 4 hours with the battery charger in equipment

MAGNETIC SPACERS

Stackable metal and plastic spacers Spacers lock magnetically Maximum height of EM-25

Maximum height of inspectable objects

Without spacers: inspection of objects with maximum height of 15 mm
With spacers 15 mm: inspection of objects with maximum height of 30 mm
With spacers 35 mm: inspection of objects with maximum height of 50 mm
Opportunity to inspect objects with a height exceeding 50 mm with additional spacers

ACCESSORIES

Anti sliding rolls set Anti sliding rolls set (n° 3) for checks and measurements on cylinders of different types with diameter from 110 mm

code RUL OVT 000653
€ 319.00
Additional Spacers Additional set of 4 spacers 15 mm

code SPT OVT 000651
€ 174.00
Additional Spacers Additional set of 4 spacers 35 mm

code SPT OVT 000652
€ 186.00

APPLICATION EXAMPLES

PCB control and measurement PCB control and measurement

(picture taken with EM-25 on Teflon feet)
Control and measurement of PCBs

Control and measurement of precision mechanical parts Control and measurement of precision mechanical parts

(picture taken with EM-25 spacers 35 mm)
Control and measurement of precision mechanical parts

Control and measurement on flexographic printing Control and measurement on flexographic printing

(picture taken with EM-25 on Teflon feet)
Control and measurement on flexographic printing

Control and measurement on offset printing Control and measurement on offset printing

(picture taken with EM-25 on Teflon feet)
Control and measurement on offset printing

Control and measurement of flexographic plates Control and measurement of flexographic plates
Control and measurement of flexographic plates

Control and measurement of flexographic plates Control and measurement of flexographic plates
Control and measurement of flexographic plates
Control and measurement of flexographic plates

Control and measurement on chalcographic printing Control and measurement on chalcographic printing
Control and measurement on chalcographic printing

Control and measurement of printing cylinders Control and measurement of printing cylinders

(picture taken with EM-25 on additional antisliding rolls)
Control and measurement of printing cylinders

Control and measurement of small objects Control and measurement of small objects
Control and measurement of small objects

Control and measurement of small tools Control and measurement of small tools
Control and measurement of small tools

Control and measurement of section of objects Control and measurement of section of objects
(picture taken with EM-25 on the supplied series of spacers 15 mm and 35 mm and an additional series of spacers 15 mm)
Control and measurement of section of objects

Control and measurement on samples of materials Control and measurement on samples of materials
Control and measurement on samples of materials

Control and measurement of small sharp tools Control and measurement of small sharp tools
(picture taken with EM-25 on a supplied series and an additional series of spacers 15 mm)
Control and measurement of small sharp tools

PRICES

EM-25 OPTIC includes:
- Optical microscope *
- Digital millesimal movement gauge
- Luminous source with led variable intensity
- Aluminium base adjustable in height
- Rechargeable battery
- Battery charger
- 4 steel feet
- 4 teflon feet
- Wooden case
* with optical microscope 2008-25 code EM25-OPT-025 € 2,548.00
* with optical microscope 2008-50 code EM25-OPT-050 € 2,565.00
* with optical microscope 2008-75 code EM25-OPT-075 € 2,578.00
* with optical microscope 2008-100 code EM25-OPT-100 € 2,620.00

EM-25 USB VIDEO OPTIC includes:
- Optical microscope *
- 5 Megapixel USB microcamera
- 2m USB cable (A type/ Mini-B type)
- Measuring software Video View Light/Basic
- Digital millesimal movement gauge
- Luminous source with led variable intensity
- Aluminium base adjustable in height
- Rechargeable battery
- Battery charger
- 4 steel feet
- 4 teflon feet
- Wooden case
with Video View Light software
* with optical microscope 2008-25 code EM25-USBL025 € 3,132.00
* with optical microscope 2008-50 code EM25-USBL050 € 3,149.00
* with optical microscope 2008-75 code EM25-USBL075 € 3,164.00
* with optical microscope 2008-100 code EM25-USBL100 € 3,204.00
with Video View Basic software
* with optical microscope 2008-25 code EM25-USBB025 € 3,552.00
* with optical microscope 2008-50 code EM25-USBB050 € 3,569.00
* with optical microscope 2008-75 code EM25-USBB075 € 3,584.00
* with optical microscope 2008-100 code EM25-USBB100 € 3,624.00

EM-25 Kit with Case
