OPTICAL ENDOSCOPES
ENDO/08-140; 08-225; 08-250; 08-425; 08-625
|

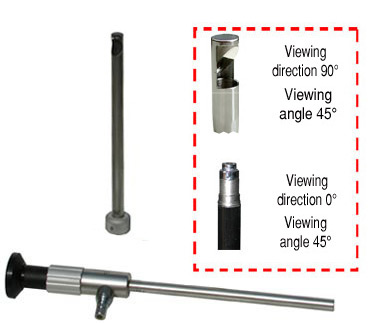

Rigid industrial endoscope, available in optic and video-optic version: both versions are arranged with focusing-regulator. The led luminous intensity, in outfit, can be regulated and a small lithium battery guarantees a long working duration.
|
SPECIFICATIONS
| Probe external diameter | 8 mm |
| Probe functional length | 40; 225; 250; 425; 625 mm |
| View direction | direct 0° and lateral 90° (rotable 360°) |
| Field of view | 45° |
|
|
OPTIONAL
- Camera with auto white balance and USB2 interface. The system is equipped with Video View Light software that allows acquisition, comparison, archiving of images and video recording.
- Light generator 230V high power with lamp 15V 150W with possibility of regulate the luminous power at continue scale, complete of coloured dichroic filters.
- Light guide in optical fiber 1800 mm.
- Special stand for endoscope to be able to effect inspection of objects more easily where there are a lot of similar objects to examine.
- Standard case.
- Power Carrying Case: Small and robust aluminium case in printed aluminium complete of all accessories and electrical parts (battery, battery - charger, etc...) ready to be connected to the USB port of a PC or laptop. Size: 380x266x150 mm; weight 5.5 kg; tension for the reload: 100-240V 50/60Hz.
- Carrying Case Station Trolley: Like the Power Carrying Case, but designed to contain also a laptop; complete with retractable trolley. (Size: 490 x 370 x 250 mm; weight 5,5 Kg)
 |
 |
 |
| Light generator (code GEN 10243) |
Light guide (code GLU 10245) |
Special stand (code SPT MAN 000613) |
 |
 |
|
| Video View Light software (code VVL 10394) |
Power Carrying Case (code VAL AMA 000610) |
|
CASES (notebook not included)
 |
 |
 |
|
Trolley (maximum space for a standard 17" notebook) with power supply without power supply |
||
 |
 |
 |
|
Suitcase (maximum space for a standard 17" notebook) with power supply without power supply |
||
