OPTICAL AND VIDEO RULERS
Video Glass Scale (VGS)
With the Video Glass Scale it is possible to measure with an extreme precision (5 hundredth) the distance between two points.
The system is provided with a robust glass ruler with decimal divisions and with a video colour lens with annular cold incorporated light.
The magnification is about 40X with a field of view of 6.7 x 5 mm and it is without parallax error.
With the Video Glass Scale it is possible to measure with an extreme precision (5 hundredth) the distance between two points.
The system is provided with a robust glass ruler with decimal divisions and with a video colour lens with annular cold incorporated light.
The magnification is about 40X with a field of view of 6.7 x 5 mm and it is without parallax error.
Sistemi Ruler Check
Designed to satisfy the need to examine or also measure distances on very wide surfaces (not possible with normal videomicroscopes), Ruler Check systems have been immediately enjoyed by the customers for their easiness of use and transport, the positive feedback made possible the development of various models.
Designed to satisfy the need to examine or also measure distances on very wide surfaces (not possible with normal videomicroscopes), Ruler Check systems have been immediately enjoyed by the customers for their easiness of use and transport, the positive feedback made possible the development of various models.

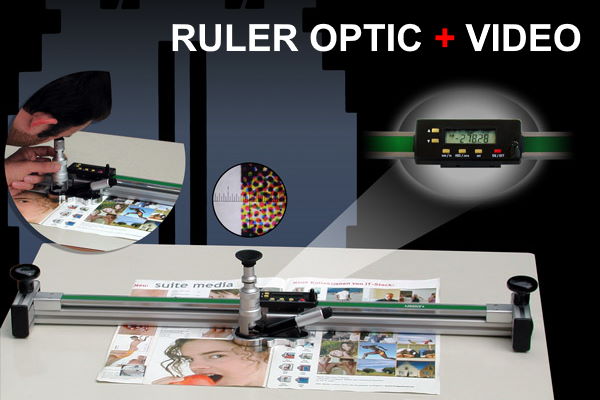

Ruler Optic-Video
The Ruler system includes a 25X little optical microscope of precision with led lighting prepared to be able to slide over a metallic bar equipped with a visualizer of digital position: with the visualizer it is possible to appreciate measures up to 0.01 mm while the accuracy is of +/- 0.03 mm for the models from 300 to 800 mm and +/- 0.05 mm for for the models from 800 to 1000 mm; for a better accuracy (until a 1 micron) we suggest Ruler check systems.
The Ruler is produced in two versions: Optical and Optical-Video. For both the models three standard versions are available for measures up to 300-500-800 mm.
The Ruler system includes a 25X little optical microscope of precision with led lighting prepared to be able to slide over a metallic bar equipped with a visualizer of digital position: with the visualizer it is possible to appreciate measures up to 0.01 mm while the accuracy is of +/- 0.03 mm for the models from 300 to 800 mm and +/- 0.05 mm for for the models from 800 to 1000 mm; for a better accuracy (until a 1 micron) we suggest Ruler check systems.
The Ruler is produced in two versions: Optical and Optical-Video. For both the models three standard versions are available for measures up to 300-
Ruler Absolute
La riga ottica/video Ruler Absolute è stata progettata per effettuare delle misure lineari ad alta precisione, oltre che per esaminare ogni dettaglio all'interno dell'area visibile di un monitor.
La Ruler Absolute è dotata di un preciso sistema di misurazione lineare garantito da una riga ottica e da un gruppo ottico/video posto su di un carrello scorrevole, pilotato da una manopola frizionata che permette micro-spostamenti.
Per consentire l'ampliamento dell'area di esplorazione e per un allineamento iniziale più veloce, sono possibili spostamenti trasversali fino a 10 mm.
La riga ottica/video Ruler Absolute è stata progettata per effettuare delle misure lineari ad alta precisione, oltre che per esaminare ogni dettaglio all'interno dell'area visibile di un monitor.
La Ruler Absolute è dotata di un preciso sistema di misurazione lineare garantito da una riga ottica e da un gruppo ottico/video posto su di un carrello scorrevole, pilotato da una manopola frizionata che permette micro-spostamenti.
Per consentire l'ampliamento dell'area di esplorazione e per un allineamento iniziale più veloce, sono possibili spostamenti trasversali fino a 10 mm.
Video Area Explorer
These systems base on the possibility to make slide a zoom video head along two orthogonal axes (X-Y) to observe, photograph, measure plane or three-dimensional objects also very great difficulty checkable on the traditional video systems.
They use a zoom lens with ring light incorporated with led and a high resolution camera for magnifying included between 30 and 120X with releases selection.
These systems base on the possibility to make slide a zoom video head along two orthogonal axes (X-Y) to observe, photograph, measure plane or three-dimensional objects also very great difficulty checkable on the traditional video systems.
They use a zoom lens with ring light incorporated with led and a high resolution camera for magnifying included between 30 and 120X with releases selection.
Peak Glass Scales
These control rules have as base a quality transparent glass, 1.7mm thickness for the 1972-Lite series (circular scale), 3mm for the 1972 series and 10mm for the 1972-S series; all have decimal graduation lines engraved through "photo-printing".
The rules allow easy and accurate readings thanks to a 15x lupe; or two lupes 10x equipped with dioptric regulation and mounted on a carriage to allow an easy slide to point on zero and on the final interest point.
This rules are resistent to change of temperature.
Lengths of 30, 50, 70 and 100 cm are available.
These control rules have as base a quality transparent glass, 1.7mm thickness for the 1972-Lite series (circular scale), 3mm for the 1972 series and 10mm for the 1972-S series; all have decimal graduation lines engraved through "photo-printing".
The rules allow easy and accurate readings thanks to a 15x lupe; or two lupes 10x equipped with dioptric regulation and mounted on a carriage to allow an easy slide to point on zero and on the final interest point.
This rules are resistent to change of temperature.
Lengths of 30, 50, 70 and 100 cm are available.
