GLASS SCALES
Possible combinations of products with scales:
1975 - 1976 - 1998 - 1999 - 2015 (Ø = 26 mm; thickness = 1.3 mm)
- Black standard (1975/ST) / Black from n°1 to n°12 (1975/SP)
- White standard (1975/W)
1983 / 1983 CH LIGHT - 2004 - 2028 - 2049 (Ø = 35 mm; thickness = 1.28 mm)
- Black standard (1983/ST) / Black from n°1 to n°13 (1983/SP1)
- White standard (1983/W) / White from n°1 to n°12 (1983/WSP)
2016 - 2037 - 2055 (Ø = 26 mm; thickness = 1.34 mm)
- Black standard (2016/ST - 2037/ST - 2055/ST) / Black n°1-2-8 only for 2016 (2016/SP)
- White standard (2016/W - 2034/W - 2055/W)
2066 (Ø = 35 mm; thickness = 1.3 mm)
- Black standard decimal-inches (2066/ST)
- White standard decimal-inches (2066/W)

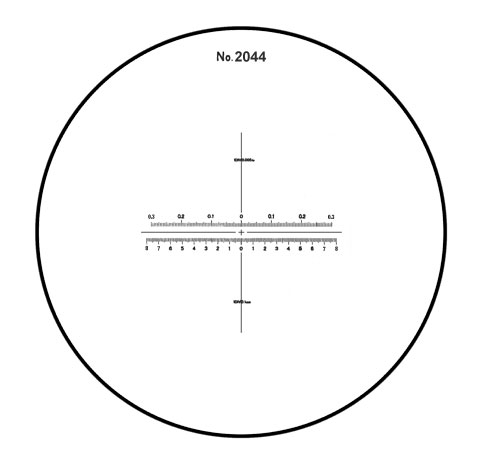

STANDARD SCALES
(black or white)
 |
 |
 |
| 1983 (decimal 30mm) | 1975 (decimal 20mm) 2016 (decimal 14mm) 2037 (decimal 5mm) 2055 (decimal 8mm) |
2066 (decimal 12mm / inch 0.5”) |
Click on images to enlarge
SCALES FROM 1 TO 13
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||
| (*) the scale n°7 is supplied for automatic calibration on Video View software (**) the scale n°13 has a thickness of 1.44 mm |
|||
Click on images to enlarge
SCALES FOR 1975
|
|
| 1972-50 Lite / 1990-4 / 2052 (Ø = 59 mm; thickness = 1.75 mm; field of view: 58 mm; 540 decimal divisions) |
1972-50 Lite / 1990-7 (Ø = 42 mm; thickness = 1.35 mm; field of view: 41 mm; 360 decimal divisions) |
Click on images to enlarge
SCALES FOR 2008-2034-2054
 |
 |
 |
| Standard (mm - inch) | For tools (mm) | For print (inch) |
| Standard (2034/2054 series) |
For tools (2034/2054 series) (only in mm) |
For print (2034/2054 series) (only in inch) |
| 20X PS No. 54 mm - No.
57 inch 40X PS No. 64 mm - No. 67 inch 60X PS No. 74 mm - No. 77 inch 100X PS No. 84 mm - No. 87 inch 150X PS No. 94 mm - No. 97 inch 200X PS No. 104 mm - No. 107 inch 300X PS No. 114 mm |
20X PS No. 55 mm 40X PS No. 65 mm |
20X PS No. 56 inch 40X PS No. 66 inch |
| Standard (2008 serie) |
For tools (2008 serie) |
For print (2008 serie) |
| 25X PS No. 24 mm 50X PS No. 13 mm 75X PS No. 34 mm 100X PS No. 44 mm |
25X PS No. 25 mm 50X PS No. 14 mm 75X PS No. 35 mm 100X PS No. 45 mm |
25X PS No. 26 inch 50X PS No. 15 inch 75X PS No. 36 inch 100X PS No. 46 inch |
Click on images to enlarge
SPECIAL SCALES FOR MICROSCOPES
| SCL-HMS1 Middle scale 1 mm 0.01 mm = 1 DIV (100 div) Size: 25 x 75 mm Thickness: 1.07 mm |
SCL-HMS2 Designed for automatic calibration with Video View software Middle scale 1 mm 0.01 mm = 1 DIV (100 div) Ø Circles: 0.07 - 0.15 - 0.6 - 1.5 mm Size: 25 x 75 mm Thickness: 1.07 mm |
 |
 |
 |
 |
| Center scale detail | Center scale detail |
