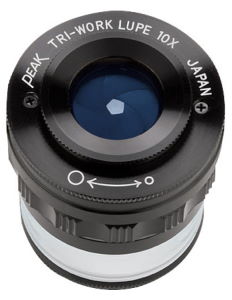

Peak Tri-Work Lupe 10X is new type of magnifier with a triple function; adopts the optical system of Scale lupe 10X which has a reputation for being top quality (1983 Peak). Three functions are:

Scale

As with the 10X loupe, 13 scales are available. The loupe comes with the standard scale.

Colored filter

In response to the requirement to observe a subject through various sorts of coloured glass, we have provided space for the upper part of the Lupe. You can be able to make observations through a light blue glass, provided as a standard, with a diameter of 23mm is installed in the unit. The observation through this filter is efficacious for the contrast.

Iris / diaphragm

It is installed between the colour glass and the eye piece lens. This iris diaphragm consisting of five feathers, covers a minimal aperture of 3mm and a maximum one of 17.8mm. The opening and closing of this iris by which visual field changes can be made easily by turning the ring to the direction of arrows. This allows you to change the field of view. You can see full field with the iris open, and a specific area turning the ring in the opposite direction.

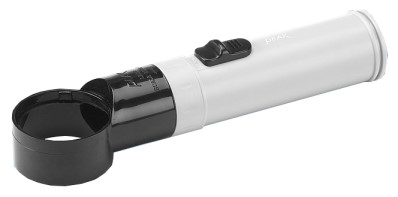

2049-SET 2049 zoom lens with illumination device that provides just the right amount of light to the object being examined. It is powered by two 1.5V UM-2 (AA) batteries.

2049-SETHX As 2049 but with high intensity led lighting (6000K). It is powered by two long-life 3.6V lithium (AA) batteries.
