JUMBO LITE

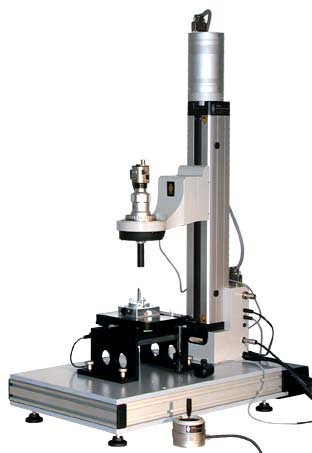

The Jumbo Lite is structurally identical to its eldest brother Work Station Jumbo but, unlike it, the motorized movement of the video-optical header is manually commanded.

It is usually known that the focusing of the objects to be measured in video is the most critical phase in many videomicroscopes, in fact the reliability of the measurements depends very much on the precision which the focusing has been made with.

The motorized movement of the head in the focusing can be executed with high precision thanks to the possibility of making microshiftings by the particular joy-stick which it is equipped with.

Jumbo Lite is supplied with a complete measurement software which foresees the acquisition, measurement, comparison, filing of the images, etc.

If the productivity in one's own company increases and consequently the necessity to keep the quality under control, Jumbo Lite has been designed for being able to easily follow the evolutions or the changed business requirements.

KIT CONTENTS

	Motorized Stand Lite complete of base (37 x 55 x 95 cm - weight about 20kg) code SPT OVT 000633
	Body VCR with 1/3" high resolution and sensibility colour microcamera code SPT OVT 000388
	Objective (50X) with magnetic mount code D-50
	Objective (320X) with magnetic mount code 320-P
	Cold Light Ring 80-120 Illuminator for working distance: 80-120mm, with magnetic mount, high luminous intensity and power regulator for high definition objectives (LDH series). code SPT OVT 000625
	The SMX-Y stand is provided with microshiftings manual slide (75-50 mm x-y) and the viewer SLIM 4x5" which, inserted in the suitable guide under the stand, allows to have on the monitor the profile of the objects for being to execute measurements. code SPT OVT 000492
	Set check engine complete of: Joystick for engine movement (code SPT OVT 000521), 2 connectors for manually using the engine (code SPT OVT 000522) code SPT OVT 000547
	Video power cable (2.3 m) code SPT OVT 000034
	Set of cables complete of: RCA-RCA video cable (code SPT OVT 000032), Engine connection cable (code SPT OVT 000501), 12V-12V 1m cable (code SPT OVT 000033) code SPT OVT 000504
	Power supply Input: 100-240V / 47-63Hz Output: 12V-5A / 24V-3A code SPT ALP 000505
	Software for measurement, comparison and filing of the images in live for PC and laptop code LLE 10121

LIGHTINGS

	Cold Light Ring 24 - WD: 25-45 24 led magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. Working distance: 24-45 mm code SPT OVT 000620
	Cold Light Ring 24 - WD: 45-80 24 led magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. Working distance: 45-80 mm code SPT OVT 000645
	Cold Light Ring 24 - WD: 80-120 24 led magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. Working distance: 80-120 mm code SPT OVT 000678
	Cold Light Ring 24 - WD: 120-150 24 led magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. Working distance: 120-150 mm code SPT OVT 000646
	Cold Light Ring 24 - WD: 30-50 24 led magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. Working distance: 30-50 mm To use with Stand CX code SPT OVT 000647
	Cold Light Ring 48 - WD: 80-120 48 led magnetic illuminator, complete of regulation of the luminous intensity. Working distance: 80-120 mm code SPT OVT 000622
	Cold Light Ring 25-45 Powerful and compact led illuminator with magnetic mount and connection cable. Working distance 25-45 mm code SPT OVT 000566
	Cold Light Ring 80-120 Powerful and compact led illuminator with magnetic mount and connection cable. Working distance 80-120 mm code SPT OVT 000625
	Cold Light Ring 120-150 Powerful and compact led illuminator with magnetic mount and connection cable. Working distance 120-150 mm code SPT OVT 000679
	Adjustable spacer ring To regulate the working distance of the Cold Light Ring from 80-120mm to 25-45mm (24 led illuminating rings) code SPT OVT 000546

	CX Light coaxial light with magnetic mount and without objective. code SPT OVT 000071
	CX Ring 10 magnetic spacer ring of 10 mm to use with objectives of the VCR series and device with coaxial light, on the stand CX. code SPT OVT 000072
	CX Ring 14 magnetic spacer ring of 14 mm to use with objectives of the VCR series and device with coaxial light, on the stand CX. code SPT OVT 000231
	Extension connection (40mm) for objectives code SPT OVT 000463

	Cold light Arms Illuminator with two semi-rigid arms, high luminous intensity, cold light, working at 12V and low consumption. Equipped with magnetic connection to be easily positioned. Technical data: Power supply: 12V; 40 mA Arms length: 37 cm; Weight: 130 g code SPT OVT 000369
	Magnetic Power Distributor equipment with magnetic connection which allows to connect 2 x 12V devices code SPT OVT 000293

LENSES

Standard, high definition and coaxial objectives

A - Video-optic header shifting

B - Working distance

C - Field of view

HIGH DEFINITION AND LONG WORKING DISTANCE OBJECTIVES
(with magnetic mount)

Code	Magnification referred to a 14" monitor* and 1/3" camera	Field of view on any 4:3 monitor	Working distance
LDH-10	10X	25 x 18 mm	126 mm
LDH-15	16X	17.5 x 12.5 mm	84 mm
LDH-50	50X	5.5 x 4.2 mm	145 mm
LDH-100	100X	2.7 x 2 mm	73 mm
LDH-200	215X	1.2 x 0.9 mm	66 mm
LDH-300	290X	1.0 x 0.7 mm	73 mm
LDH-400	425X	0.6 x 0.5 mm	73 mm
LDH-500	550X	0.5 x 0.35 mm	73 mm
LDH-2350	2350X	0.12 x 0.09 mm	20 mm
* A magnification, e.g. 50X, means that if you measure with a normal ruler the image that appears on the monitor with a 14" screen, it will be 50 times larger than the real size of the object under examination.

STANDARD OBJECTIVES (with magnetic mount)

Code	Video mag.	Field of view	Working distance
SE-10 **	10X	24 x 18 mm	126 mm
SE-15 **	15X	18.2 x 13.6 mm	79 mm
SE-20 **	20X	15 x 11.8 mm	65 mm
A-25	25X	11.0 x 8.7 mm	38 mm
D-50	50X	5.5 x 4.2 mm	26 mm
F-75	75X	3.6 x 2.7 mm	24 mm
G-100	100X	2.7 x 2.0 mm	30 mm
H-150	150X	1.8 x 1.4 mm	23 mm
** This objective can only be used with the STAND-SE and the Jumbo.

OBJECTIVES FOR COAXIAL LIGHT (with magnetic mount)

Code	Video mag.	Field of view	Working distance
200-P	253X	1.3 x 0.98 mm	33 mm
CX-200	210X	1.3 x 0.98 mm	33 mm
320-P	390X	0.85 x 0.64 mm	20 mm
475-P	550X	0.55 x 0.42 mm	12 mm
750-P	950X	0.35 x 0.26 mm	8 mm
1100-P	1380X	0.25 x 0.19 mm	13 mm
1500-P	1810X	0.16 x 0.12 mm	10 mm
2350-P	2750X	0.1 x 0.09 mm	6 mm

The values reported on the tables could be lightly different (5-10%) due to the optical and mechanical unlike series.

SLIDES

	Translation table XY 150x50 mm code SLI MAR 000206
	Translation table XY 25x25 mm code SLI MAR 000207 Translation table XY 50x50 mm code SLI MAR 000205 Translation table XY 100x100 mm code SLI MAR 000208
	Digital micrometrical head 0.001 mm; range 0-50 mm code SPT LIN 000374
	Centesimal micrometrical head 0.01 mm; range 25 mm code SPT TES 000381
	Miniaturized Translation table XY 10x10 mm (Size: 120x120x16 mm; Weight: 430 g) code SLI OVT 000438
	Stand for micrometrical tables x-y code SPT OVT 000553
	Flat viewer (slim) to make measurements of profiles (5x4") code 3709
	As 3709, but with power supply code 3709/A
	The SMX-Y stand is provided with microshiftings manual slide (75-50 mm x-y) and the viewer SLIM 4x5" which, inserted in the suitable guide under the stand, allows to have on the monitor the profile of the objects for being to execute measurements. code SPT OVT 000492

DOCUMENTATION

Connection diagram (162 Kb)
