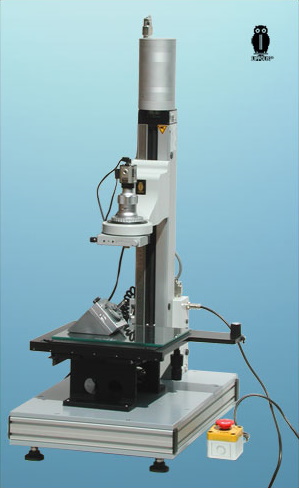

WORK STATION JUMBO (WSJ)
Work Station Jumbo (WSJ) represents the top of our range "Video Systems"; it is completed motorized and equipped with a software Jumbo Control which handles the calibration of the objectives for the manual and automatic movement of the video-optical head with steps also of half micron through PC.
The video input coming from the high resolution camera, while the software VideoKLite allows automatic focus, measurements, comparisons and filings of the images in a simple and fast way also by not highly specialized people.
The lighting source of this system is of annular type at 48 and 24 leds selected for objectives with high and small working distance; it is also possible to use a special coaxial luminous source for high magnifications and medium-small working distance objectives (30 - 10 mm).
Thanks to its characteristic of solidity and precision the Work Station Jumbo is able to measure the depth (Z axis) of little holes or cracks on the surfaces of the materials completely in automatic or in semi-automatic step by step mode through software and with high precision of 2 microns at 2350X.
The movement of the objects on X-Y axis is guaranteed by a mechanical stage (in outfit it is supplied the 50 x 50 mm with millesimal digital control) through two micrometrical heads, while a luminous source with a surface of 4 x 5" placed under the glass of the mechanical stage allows to make inspections and measurements of profiles of small and big objects.
A lot of accessories are already available for the use of the Work Station Jumbo and many other are in execution; for any particular request, you can send us an e-mail explaining your requirements.
KIT CONTENTS
 |
Motorized Stand Control with base (37 x 55 x 95 cm - weight about 20kg) code SPT OVT 000499 |
 |
Body VCR with 1/3" high resolution and sensibility colour microcamera code SPT OVT 000388 |
 |
High definition objective (10X) with magnetic mount code LDH-10 |
 |
Objective (200X) with magnetic mount code 200-P |
|
Objective (320X) with magnetic mount code 320-P |
 |
Cold Light Ring 24 Magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. code SPT OVT 000620 |
 |
Cold Light Ring 80-120 Illuminator for working distance: 80-120mm, with magnetic mount, high luminous intensity and power regulator for high definition objectives (LDH series). code SPT OVT 000625 |
 |
Stand for x-y stage with viewer Slim 4x5" for viewing the profiles of the objects. The Stand is equipped with guide for the insertion of the viewer. code SPT OVT 000493 |
 |
Translation table XY 50 x 50 mm code SLI MAR 000205 |
 |
2 x Digital micrometrical heads 0.001 mm; range 0-50 mm code SPT LIN 000374 |
 |
Set check engine complete of: Emergency stop (code SPT OVT 000500), Cable with stop micro-switch (code SPT OVT 000502) code SPT OVT 000503 |
 |
Video power cable (2.3 m) code SPT OVT 000034 |
 |
Set of cables complete of: RCA-RCA video cable (code SPT OVT 000032), Engine connection cable (code SPT OVT 000501), 12V-12V 1m cable (code SPT OVT 000033) code SPT OVT 000504 |
 |
Power supply Input: 100-240V / 47-63Hz Output: 12V-5A / 24V-3A code SPT ALP 000505 |
   |
Software VideoKLite + Jumbo Control for automatic focusing, measurement and comparison of the images in live for PC and laptop code SPT OVT 000516 |
 |
Magnetic Stand-Up 50 Couple of magnetic 90° angulars, they allow to keep perfectly lined up and perpendicular to the objective of the video system very thin or difficult to handle objects (i.e. cross sections of metal laminae, sheets of paper, plastic, etc). Size: 50 x 50 x 15 mm code SPT OVT 000490 |
JUMBO IS A MODULAR SYSTEM
 |
 |
 |
 |
| Removal of the video-optic head and of the illumination from the Jumbo system and insertion on a Stand x-y ... | |
 |
| ... Jumbo has been transformed in a VCR-P. Now it's possible to make examinations directly on the workplace |
LIGHTINGS
|
Cold Light Ring 24 - WD: 25-45 24 led magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. Working distance: 24-45 mm code SPT OVT 000620 |
|
Cold Light Ring 24 - WD: 45-80 24 led magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. Working distance: 45-80 mm code SPT OVT 000645 |
|
Cold Light Ring 24 - WD: 80-120 24 led magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. Working distance: 80-120 mm code SPT OVT 000678 |
|
Cold Light Ring 24 - WD: 120-150 24 led magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. Working distance: 120-150 mm code SPT OVT 000646 |
|
Cold Light Ring 24 - WD: 30-50 24 led magnetic illuminator for standard optics VCR series with the possibility to select 14 different angles of provenience of the light. Complete of luminous intensity regulation. Working distance: 30-50 mm To use with Stand CX code SPT OVT 000647 |
|
Cold Light Ring 48 - WD: 80-120 48 led magnetic illuminator, complete of regulation of the luminous intensity. Working distance: 80-120 mm code SPT OVT 000622 |
|
Cold Light Ring 25-45 Powerful and compact led illuminator with magnetic mount and connection cable. Working distance 25-45 mm code SPT OVT 000566 |
|
Cold Light Ring 80-120 Powerful and compact led illuminator with magnetic mount and connection cable. Working distance 80-120 mm code SPT OVT 000625 |
|
Cold Light Ring 120-150 Powerful and compact led illuminator with magnetic mount and connection cable. Working distance 120-150 mm code SPT OVT 000679 |
 |
Adjustable spacer ring To regulate the working distance of the Cold Light Ring from 80-120mm to 25-45mm (24 led illuminating rings) code SPT OVT 000546 |
 |
CX Light coaxial light with magnetic mount and without objective. code SPT OVT 000071 |
 |
CX Ring 10 magnetic spacer ring of 10 mm to use with objectives of the VCR series and device with coaxial light, on the stand CX. code SPT OVT 000072 |
 |
CX Ring 14 magnetic spacer ring of 14 mm to use with objectives of the VCR series and device with coaxial light, on the stand CX. code SPT OVT 000231 |
 |
Extension connection (40mm) for objectives code SPT OVT 000463 |
LENSES
 |
A - Video-optic header shifting B - Working distance C - Field of view |
HIGH DEFINITION AND LONG WORKING DISTANCE OBJECTIVES
(with magnetic mount)
| Code | Magnification referred to a 14" monitor* and 1/3" camera |
Field of view on any 4:3 monitor  |
Working distance |
| LDH-10 | 10X | 25 x 18 mm | 126 mm |
| LDH-15 | 16X | 17.5 x 12.5 mm | 84 mm |
| LDH-50 | 50X | 5.5 x 4.2 mm | 145 mm |
| LDH-100 | 100X | 2.7 x 2 mm | 73 mm |
| LDH-200 | 215X | 1.2 x 0.9 mm | 66 mm |
| LDH-300 | 290X | 1.0 x 0.7 mm | 73 mm |
| LDH-400 | 425X | 0.6 x 0.5 mm | 73 mm |
| LDH-500 | 550X | 0.5 x 0.35 mm | 73 mm |
| LDH-2350 | 2350X | 0.12 x 0.09 mm | 20 mm |
| * A magnification, e.g. 50X, means that if you measure with a normal ruler the image that appears on the monitor with a 14" screen, it will be 50 times larger than the real size of the object under examination. | |||
STANDARD OBJECTIVES (with magnetic mount)
| Code | Video mag. | Field of view | Working distance |
| SE-10 ** | 10X | 24 x 18 mm | 126 mm |
| SE-15 ** | 15X | 18.2 x 13.6 mm | 79 mm |
| SE-20 ** | 20X | 15 x 11.8 mm | 65 mm |
| A-25 | 25X | 11.0 x 8.7 mm | 38 mm |
| D-50 | 50X | 5.5 x 4.2 mm | 26 mm |
| F-75 | 75X | 3.6 x 2.7 mm | 24 mm |
| G-100 | 100X | 2.7 x 2.0 mm | 30 mm |
| H-150 | 150X | 1.8 x 1.4 mm | 23 mm |
** This objective can only be used with the STAND-SE and the Jumbo. |
|||
OBJECTIVES FOR COAXIAL LIGHT (with magnetic mount)
| Code | Video mag. | Field of view | Working distance |
| 200-P | 253X | 1.3 x 0.98 mm | 33 mm |
| CX-200 | 210X | 1.3 x 0.98 mm | 33 mm |
| 320-P | 390X | 0.85 x 0.64 mm | 20 mm |
| 475-P | 550X | 0.55 x 0.42 mm | 12 mm |
| 750-P | 950X | 0.35 x 0.26 mm | 8 mm |
| 1100-P | 1380X | 0.25 x 0.19 mm | 13 mm |
| 1500-P | 1810X | 0.16 x 0.12 mm | 10 mm |
| 2350-P | 2750X | 0.1 x 0.09 mm | 6 mm |
| The values reported on the tables could be lightly different (5-10%) due to the optical and mechanical unlike series. |
SLIDES
 |
Translation table XY 150x50 mm code SLI MAR 000206 |
|
Translation table XY 25x25 mm code SLI MAR 000207 Translation table XY 50x50 mm code SLI MAR 000205 Translation table XY 100x100 mm code SLI MAR 000208 |
|
Digital micrometrical head 0.001 mm; range 0-50 mm code SPT LIN 000374 |
 |
Centesimal micrometrical head 0.01 mm; range 25 mm code SPT TES 000381 |
 |
Miniaturized Translation table XY 10x10 mm (Size: 120x120x16 mm; Weight: 430 g) code SLI OVT 000438 |
 |
Stand for micrometrical tables x-y code SPT OVT 000553 |
 |
Flat viewer (slim) to make measurements of profiles (5x4") code 3709 |
|
As 3709, but with power supply code 3709/A |
 |
The SMX-Y stand is provided with microshiftings manual slide (75-50 mm x-y) and the viewer SLIM 4x5" which, inserted in the suitable guide under the stand, allows to have on the monitor the profile of the objects for being to execute measurements. code SPT OVT 000492 |
ACCESSORIES
 |
Cold light Arms Illuminator with two semi-rigid arms, high luminous intensity, cold light, working at 12V and low consumption. Equipped with magnetic connection to be easily positioned. Technical data: Power supply: 12V; 40 mA Arms length: 37 cm; Weight: 130 g code SPT OVT 000369 |
 |
Magnetic Power Distributor equipment with magnetic connection which allows to connect 2 x 12V devices code SPT OVT 000293 |
 |
Stand XY complete of stage "X-Y 10 mm" code STAND PRO 10177 VCR stand Stand complete of stage "X-Y 10mm" with magnetic rolls code STAND PRM 10178 |
 |
Stand CX for coaxial light code STAND PCX 10179 Magnetic base complete of magnetic rolls code STAND CXM 10228 |
 |
Spacer ring (height 43mm) for VCR body useful in a few cases when distancing more with the objective from the target is necessary. code SPT OVT 000396 |
 |
Spacer ring (height 24mm) for VCR body useful in a few cases when distancing more with the objective from the target is necessary. code SPT OVT 000399 |
 |
VCR-ZLite In alternative to the standard VCR body (code SPT OVT 000388) if you want to measure also the Z axis directly on workplace. code VCR-ZL P 10360 (for more informatiuon see the dedicated page of the VCR-ZL series) |
 |
VCR-ZP In alternative to the standard VCR body (code SPT OVT 000388) if you want to measure also the Z axis directly on workplace. code VCR-ZP 10207 (for more informatiuon see the dedicated page of the VCR-ZP series) |
   |
Magnetic Stand-Up Couple of magnetic 90° angulars, they allow to keep perfectly lined up and perpendicular to the objective of the video system very thin or difficult to handle objects (i.e. cross sections of metal laminae, sheets of paper, plastic, etc). Size: 25 x 25 x 15 mm code SPT OVT 000489 Size: 50 x 50 x 15 mm code SPT OVT 000490 Size: 70 x 70 x 75 mm code SPT OVT 000491 |
   |
Magnetic Mini-Chuck This accessory is very useful when you want to inspect and to measure with video systems small tools like drills - cutters, etc. with diameters from 1.5 and 30 mm. The little chuck is equipped with dividing notches of 5° up to 360° and it can be manually turned for the inspection of the surfaces of the tools, if used with the Magnetic Stand-Up 70 and a viewer (like our SLIM 4x5") you will have at disposal a kit of extraordinary practicality for the control and measure of profiles in many applications. code SPT OVT 000494 |
 |
Couple of prisms magnetic and made in metal, matchable one on the other or with other couples; useful to raise the VCR Stands when you want to examine small three-dimensional objects. (Size: 50x30x30mm) code SPT OVT 000626 Single prism: code SPT OVT 000621 |
CUSTOM
|
Motorized Stand Control with ½ µm steps complete of base (37 x 55 x 95 cm - weight about 20kg) code SPT OVT 000499 |
|
Motorized Stand Lite complete of base (37 x 55 x 95 cm - weight about 20kg) code SPT OVT 000633 |
 |
Body VCR without microcamera code SPT OVT 000517 |
 |
Zoom Objective K1 complete of cold light annular lighting (48 leds) (SPT OVT 000483), with luminous intensity regulator (SPT OVT 000484), CCD 1/2" high resolution colour 221 S camera (SPT SIC 000382) code SPT OVT 000364 As SPT OVT 000364, but Zoom Objective K2 (44-244X) with high resolution colour 250D2 (CCD 1/3") camera (SPT WAT 000684) code SPT OVT 000487 |
|
Power supply Input: 100-240V / 47-63Hz Output: 12V-5A / 24V-3A code SPT ALP 000505 |
 |
Cable with limit stop micro-switch code SPT OVT 000556 |
|
Video power cable (2.3 m) code SPT OVT 000034 |
 |
Joystick only for Jumbo Stand Lite) Manual command for Jumbo series, it allows to work also without using a PC. code SPT OVT 000547 |
 |
Emergency stop code SPT OVT 000557 |
 |
Set of cables engine control, power supply and video code SPT OVT 000558 |
|
Software VideoKLite code FVK 10143 |
|
Software Video View Pro code SVC 10379 |
WORKING WITH "ANNULAR LIGHT PROFESSIONAL"
The possibility of inspecting any type of surface with all the wide range of available objectives of the VCR series (25X/2350X) and of the high definition series (LDH), will give a safe certainty to the operator to be able to use his device in almost all the occasions.
The difference between the set for annular light Professional and the annular light Lite one is the possibility, for the Professional, of selecting 14 different angulations of origin of the lightings around the subject so as to be able to search every particular and make the image visible and stereoscopic as in the example:
|

|
||
|
The use of the angulated light is suggested also to give prominence to the harshnesses or the conformation of the various surfaces.
