VIDEO CHECK ROLL-Z Lite (VCR-ZLite)

It is a portable videomicroscope for inspections and measurements of cracks or engravings on flat and curved surfaces on X-Y-Z axis. Very robust, completely in aluminium, with interchangeable optics, it uses the same range of objectives and accessories of the VCR series. Unlike the VCR-Z series, the VCR-ZLite makes micrometrical measurements on Z axis with manual control focusing with high precision thanks to the help of a pilot mechanism in the microshiftings and the focusing software.

A digital millesimal comparator ensures an easy and immediate reading of the depth value (Z axis) obtained from the difference of focusing between the upper and the lower surface.

Connected to a PC or laptop through its USB camera and guided by our focusing software, step by step also the least expert users will be able to have a real reading of the values on Z axis. Automatic optics calibration.

The VCR-ZLite is delivered with a high resolution colour microcamera and an annular lighting system with adjustable high luminous intensity which allow to have on the screen high quality images that can be saved in more common formats.

Through Video View Basic software it is possible to make measurements in live, comparisons and storing of the images very easily. The software also allows you to make measurements on the saved photos, even after a long time and without any devices connected.

Thanks to its compactness, practicality of use (it works at 5V) and a reduced price, the VCR-ZLite becomes the ideal tool for the people who have to travel, being sure to have at disposal a reliable tool of precision to connect to the laptop.

If the VCR-ZLite is supplied with X-Y stand with microshiftings (10 mm), coaxial light set and annular light set, it takes the name VCR-ZLite CX; this version is advised for who want to do micro-graphics or to inspect and measure difficult surfaces as for example the depth of printing cylinder for rotogravure or anilox.

If you want to have a lighting source with possibility to illuminate the objects from different angles, indispensable to have the three-dimensionality of the objects or the visibility of some printed holograms, the VCR-ZLite Pro version is available.

Thanks to this configuration the system is able to solve almost all the requests of inspection of metallic and polymer surfaces.

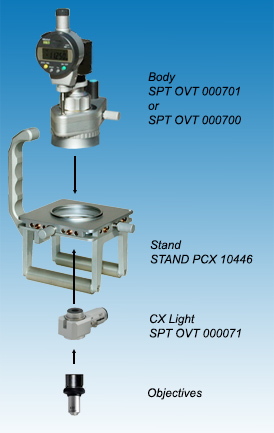

VCR-ZLite CX with coaxial light

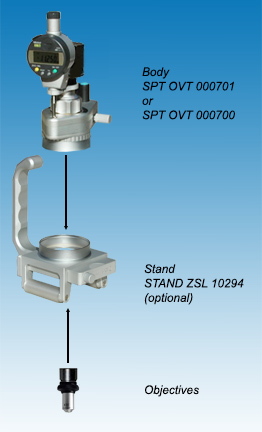

BASIC EQUIPMENT FOR ALL VCR-ZLite

	Body for VCR ZL complete of USB2.0 CMOS 5Mpx camera (SPT DNS 000685) code SPT OVT 000701 or Body for VCR ZL complete of USB3.0 CMOS 5Mpx camera (SPT DNS 000687) code SPT OVT 000700
	USB cable code SPT OVT 013 4PNUSB (for USB 2.0 camera) code SPT OVT 013 MCUSB3 (for USB 3.0 camera)
	Video View Basic software for the vision, acquiring and all types of measurements of the images code VVB 10395
	Aluminium case for VCR Overall dimensions: 380 x 266 x 160 mm code VAL AMA 000212

BASIC EQUIPMENT VCR-ZLite PRO

	Stand "x-y" 10 mm code STAND PRO 10177
	Set annular light with magnetic mount for Stand Pro 10177 code SPT OVT 000624
	475X objective (field of view 0.55 x 0.42 mm) code 475-P

*Camera*	*Software*	Code
USB2.0 CMOS 5Mpx	Video View BASIC	VCR-ZLP DN50 10360
USB3.0 CMOS 5Mpx	Video View BASIC	VCR-ZLP EN50 10360

BASIC EQUIPMENT VCR-ZLite CX

	Stand "CX" code STAND PCX 10446
	CX light code SPT OVT 000071
	475X objective code 475-P 750X objective code 750-P

*Camera*	*Software*	Code
USB2.0 CMOS 5Mpx	Video View BASIC	VCR-ZLCX DN50 10188
USB3.0 CMOS 5Mpx	Video View BASIC	VCR-ZLCX EN50 10188

OPTIONAL

	Stand "CX" code STAND PCX 10446 and Stand "x-y" 10 mm code STAND PRO 10177
	CX light code SPT OVT 000071
	Set annular light with magnetic mount for Stand Pro 10177 code SPT OVT 000624
	Couple of magnetic rollers for "Stand Lite" Length: 63 mm code SPT OVT 000232
	Couple of magnetic rolls for "Stand XY" of the VCR series Length: 104 mm code SPT OVT 000401
	Couple of magnetic rolls for "Stand XY" of the VCR series Length: 102 mm code SPT OVT 000233
	Couple of mini metallic prisms for the perfect stability of cylindrical objects in horizontal position (size: 50x30x30 mm) code SPT OVT 000626 single prism: code SPT OVT 000621
	Magnetic Stand-Up 25 Couple of 90° magnetic angulars, they allows to keep very thin or hardly manipulable objects perfectly aligned and perpendicular to the objective (i.e. thin metallic layers, sheets of paper, plastic, etc.). Size: 25x25x15 mm code SPT OVT 000489
	Spacer ring (height 43 mm) for Stand Lite and Stand xy. Indispensable when you want to use high definition objectives (LDH) or the 15X of the VCR series (field of view: 18.2 x 13.6 mm). To use preferably together with the spacer ring of 24 mm to examine small three-dimensional objects. code SPT OVT 000396
	Spacer ring (height 24 mm) for Stand Lite and Stand xy. To use obligatorily together with the Spacer Ring of 43 mm if you want to examine three-dimensional objects or curved surfaces with LDH objectives or the 15X of the VCR series. With the Stand CX is indispensable to be used in presence of small three-dimensional objects. code SPT OVT 000399
	Cold Light Ring 80-120 Lighting source for woking distances of 80-120mm, with high luminous intensity magnetic mount and power regulator for high definition objectives (LDH series). To be used with "Stand CX". code SPT OVT 000625

OBJECTIVES FOR VCR-ZLite with Magnetic Mount
(Annular Light)

Code	Video mag.	Field of view	Min. examineable cylinder diameter [mm]
A-25	25X	11.0 x 8.7 mm
D-50	50X	5.5 x 4.2 mm
F-75	75X	3.6 x 2.7 mm
G-100	100X	2.7 x 2.0 mm
H-150	150X	1.8 x 1.4 mm
♦ 200-P	200X	1.3 x 0.98 mm
♦ 320-P	320X	0.85 x 0.64 mm
♦ 475-P	475X	0.55 x 0.42 mm
♦ 750-P	750X	0.35 x 0.26 mm
♦ 1100-P	1100X	0.25 x 0.19 mm
♦ 1500-P	1500X	0.16 x 0.12 mm
♦ 2350-P	2350X	0.12 x 0.09 mm
♦ Objectives that can also be used with coaxial light. Escursion on the Z axis of the VCR = 23mm. Other objectives are available on request.

Note: It's possible to inspect cylinders with a diameter of less than 115 mm using suitable supports as in the examples shown in the "Roller Stand" section.

CHOOSE THE RIGHT OBJECTIVE
LOOKING AT THE VALUE OF THE FIELD OF VIEW:

Click on the keys

Every key of the keyboard, represents an image taken using the choosen magnification.

Practical example of employment of a VCR with PRISMS and STAND-UP

POSSIBLE APPLICATIONS


Distance between the lighting source and the plane	Best working distance between a cylinder's surface and the lighting source (Ø min 115 mm)	Position the cylinder must have when it has a diameter less than 115 mm


Objects' maximum height if placed on a flat surface: 7 mm	Position of the rising supports (prisms) for the inspection of objects with height between 12 and 32 mm	Position of the prisms for the inspection of objects with height between 42 and 62 mm


Inspections of multilayered sheets or of very thin profiles through the use of prisms and magnetic STAND-UPs		Support (prism) for the inspection of small cylindric objects

For a correct illumination please refer to the following example

YES	NO	YES

LIGHTING EXAMPLES

⇓⇓ Surfaces with Annular Lighting ⇓⇓

Silk-screened plexiglass (200X)	Chemically treated glass (320X)	Anilox roll (1000X)	Rotochalcographic cylinder (750X)

⇑⇑ Surfaces with Coaxial Lighting ⇑⇑

ANNULAR LIGHT

Shaded parts
(no visible)

Luminous rays coming from an irregular surface

Lighted parts
(visible)

Reflected rays forming the visible image

The lighting is supplied by a luminous source which is placed as a ring around the lens. The vision of the object through the lens gives a soft image as the rays are reflected and absorbed in different manners by the various surfaces.
This type of lighting is the most used one as it fits to a greater extent of surfaces of different materials.

Engraving on titanium

Piece of paper

1 Euro coin

COAXIAL LIGHT

The lighting goes through the same axis of the lens.
The light comes perpendicularly on the surface of the object creating a hard image; this is due to the complete return of rays coming from flat surfaces and of those reflecting from slanting surfaces. This system is perfect to visualize engravings of metallic objects.

Engraving on titanium

Piece of paper

1 Euro coin

OBJECTIVES FOR COAXIAL LIGHT with Magnetic Mount

Code	Video magnification	Field of view	Maximum examineable depth
200-CX	225X	1.4 x 1.1 mm	15 mm
320-CX	390X	0.7 x 0.5 mm	-
475-CX	550X	0.5 x 0.4 mm	-
750-CX	950X	0.3 x 0.2 mm	-
1100-CX	1380X	0.2 x 0.15 mm	-
1500-CX	1810X	0.15 x 0.11 mm	-
2350-CX	2750X	0.1 x 0.09 mm	-
- The values reported on the tables could be lightly different (5-10%) due to the optical and mechanical unlike series. - These objectives are usable also with VCR-CX PRO with annular light.

WORKING WITH "ANNULAR LIGHT PROFESSIONAL"

The possibility of inspecting any type of surface with all the wide range of available objectives of the VCR series (25X/2350X) and of the high definition series (LDH), will give a safe certainty to the operator to be able to use his device in almost all the occasions.

The difference between the set for annular light Professional and the annular light Lite one is the possibility, for the Professional, of selecting 14 different angulations of origin of the lightings around the subject so as to be able to search every particular and make the image visible and stereoscopic as in the example:

Annular light professional

Clicking on the keyboard you will have a visual demonstration of the illumination patterns.

The use of the angulated light is suggested also to give prominence to the harshnesses or the conformation of the various surfaces.

APPLICATION EXAMPLES

Print screen (50X)	Print point (200X)	Print screen (200X)
Flexographic cliché (25X)	Anilox cylinder (1550X)	Engraved plate for offset printing (320X)
Section of milk's carton (320X)	Section of business card (475X)	Section of rubberized cloth (printing cliché) (75X)
Razor blade edge (750X)	Rim of the razor blade examined with coaxial light (750X)	Watch mechanism (100X)
Notes cardboard (50X)	Notes cardboard (320X)	White paper photocopy with traces of toner (320X)
